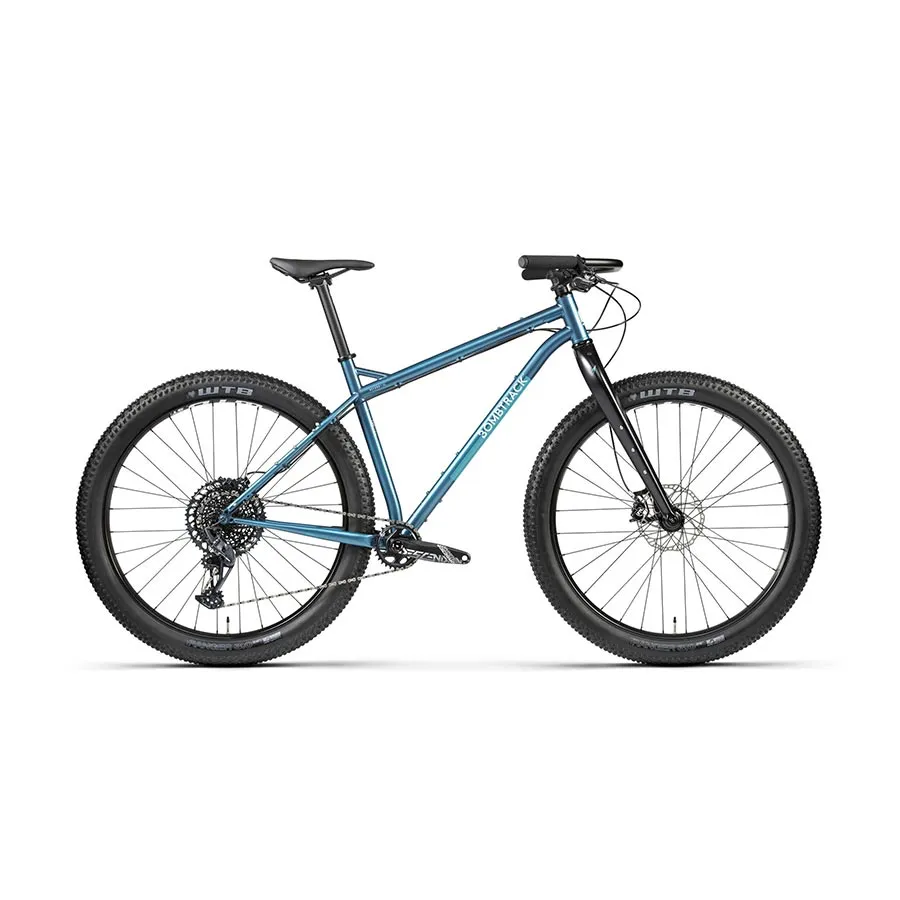

BEYOND ADV For rides that go the extra mile, you cannot compromise on weight – or comfort. The Beyond ADV packs 29’’ tires, free-spinning gearing, and a range of handling positions thanks to the vast sweep of a Jones H-Bar handlebar. Low profile geometry provides standover for technical riding while improving handling when ridden loaded. The double-butted steel frame, accompanied by a tapered BPC carbon fork, cuts weight without losing comfort or control. Mounting points allow an array of cargo-carrying opportunities; the bike rounded off with a 10 – 52T cassette and Magura Trail Sport brakes mean only the edges of a map will hold you back.
Wheels: Tubeless-ready WTB ST i45 front rim, WTB ST i40 rear rim with tubeless-ready WTB Ranger Tough / Fast rolling 3.0” tires.
Frame: Double-butted suspension corrected CrMo frame with rack and fender mounts and BSA bottom bracket.
Fork: Bombtrack BPC full carbon fork with triple cage mounts on both legs.
Hubs: Bombtrack Grad Boost disc brake hubs with 15 and 12 mm through axles.
Drivetrain: Sram GX Eagle 12-speed drivetrain with 10 – 52t cassette.
Mounts: Top tube bag direct mounts, triple cage mounts on both seat stays, underneath and on top of the down tube, double cage mounts on the seat tube.
Disc Brakes: Magura Trail Sport hydraulic disc brake with four front pistons and two at the rear for maximum power and control.
Stealth dropper post routing.
Weight: 13.7 kg
